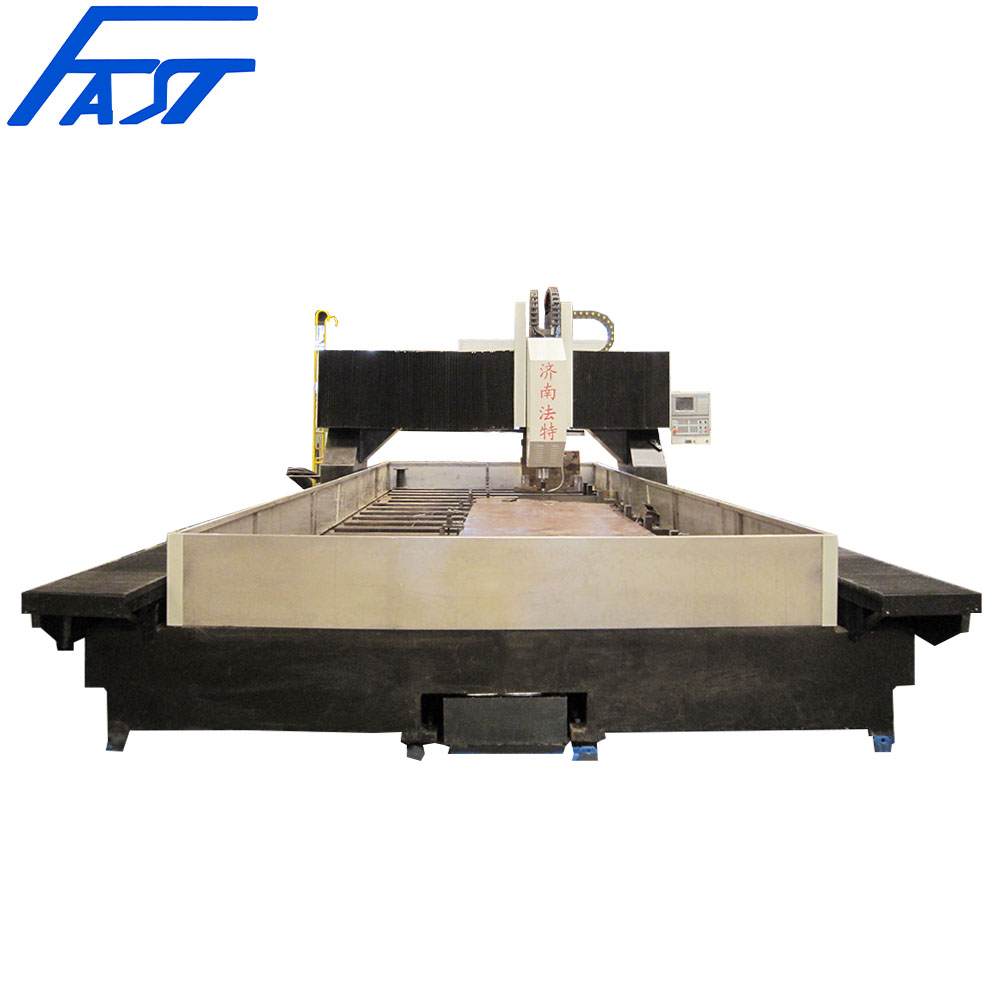

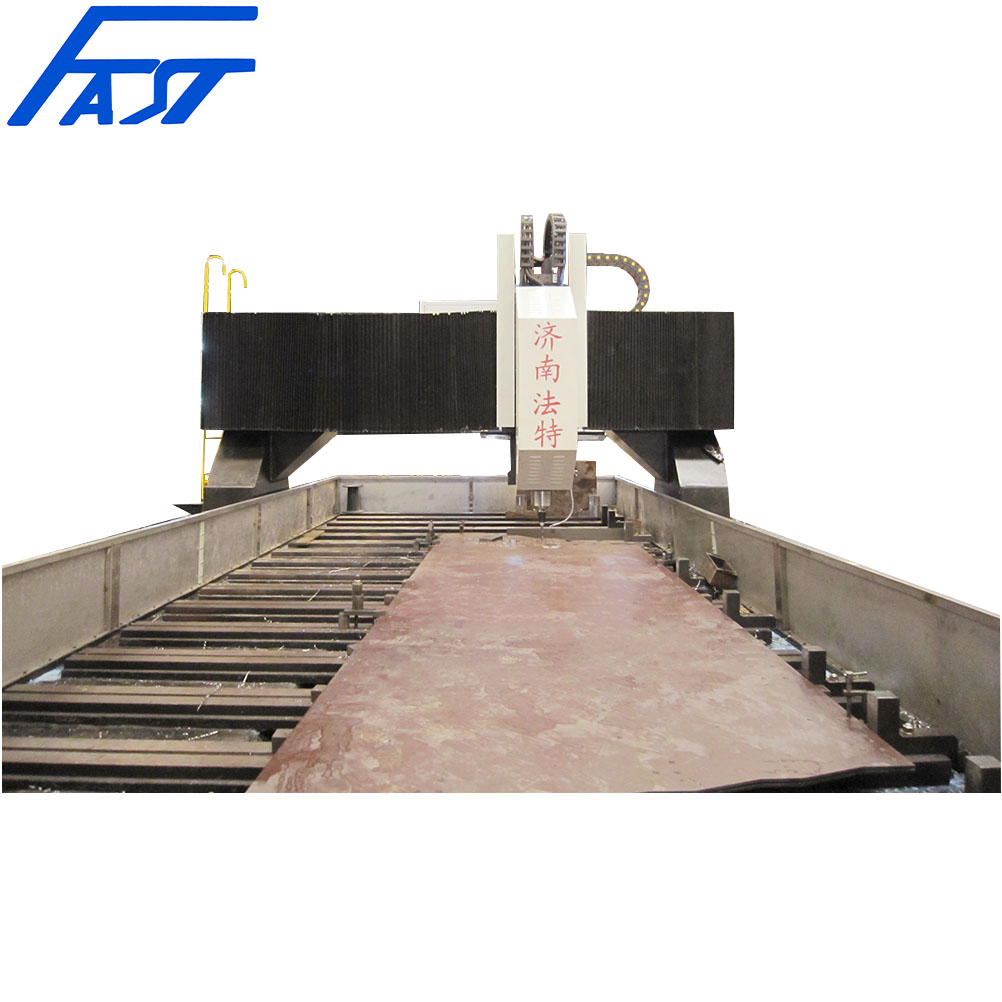

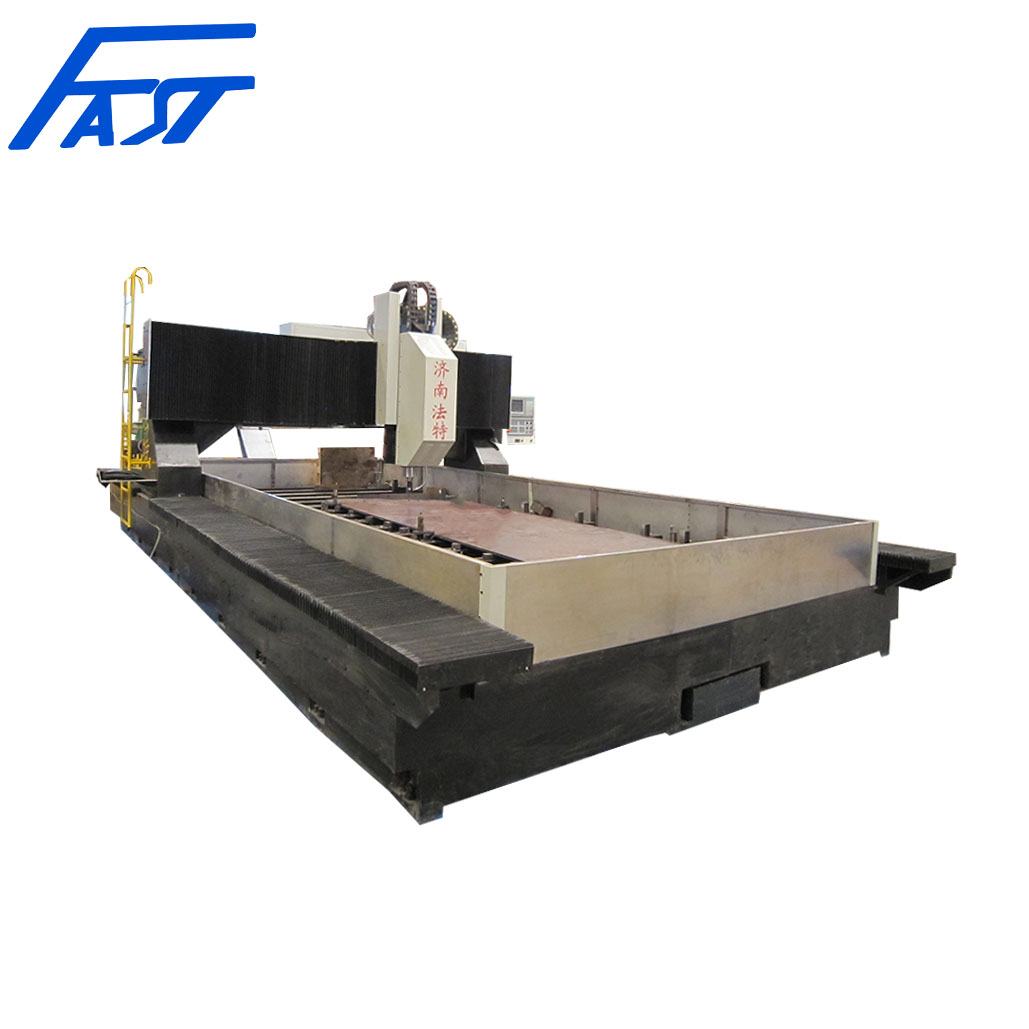

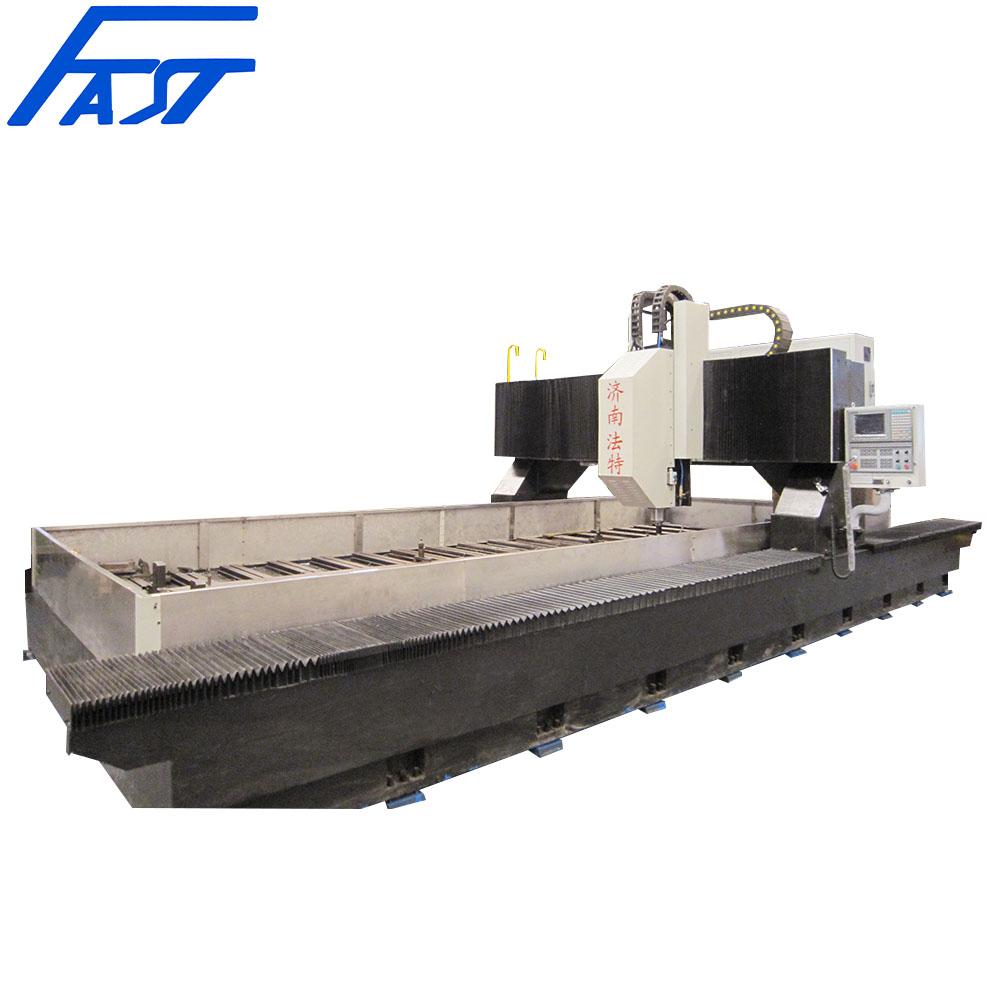

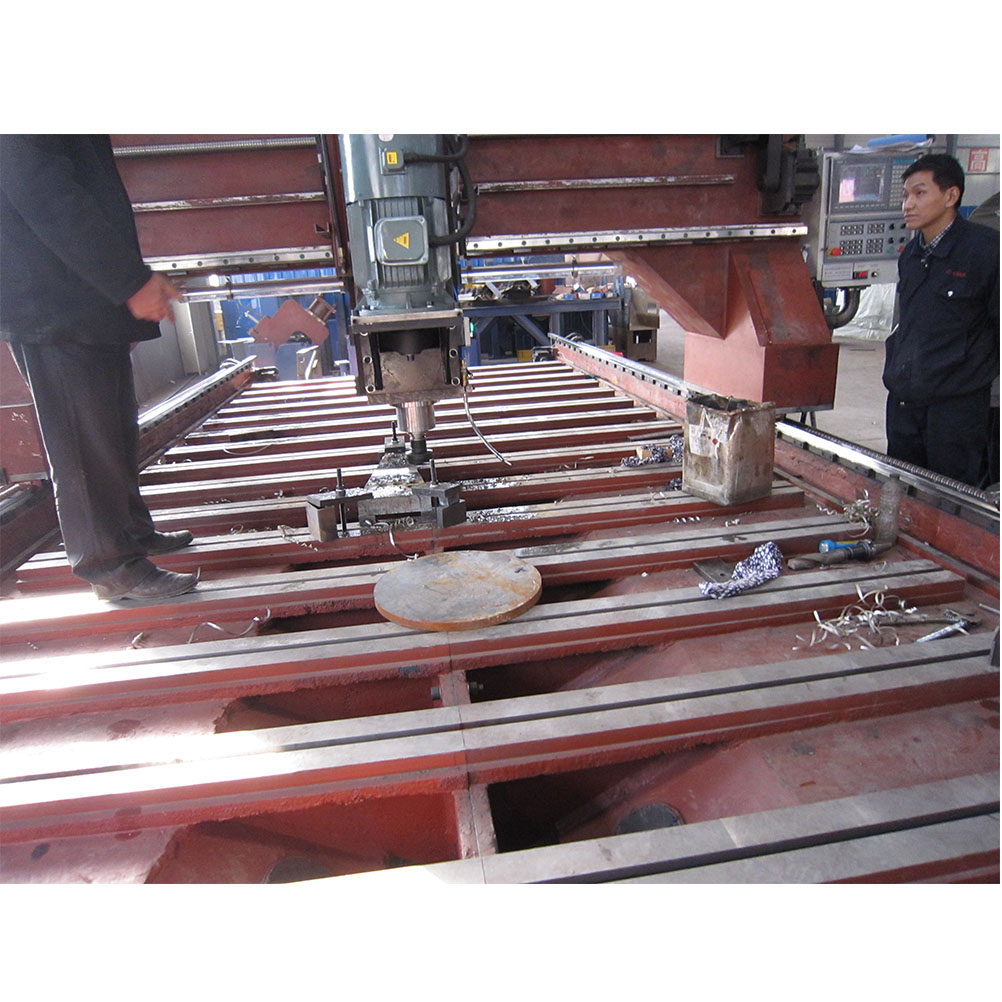

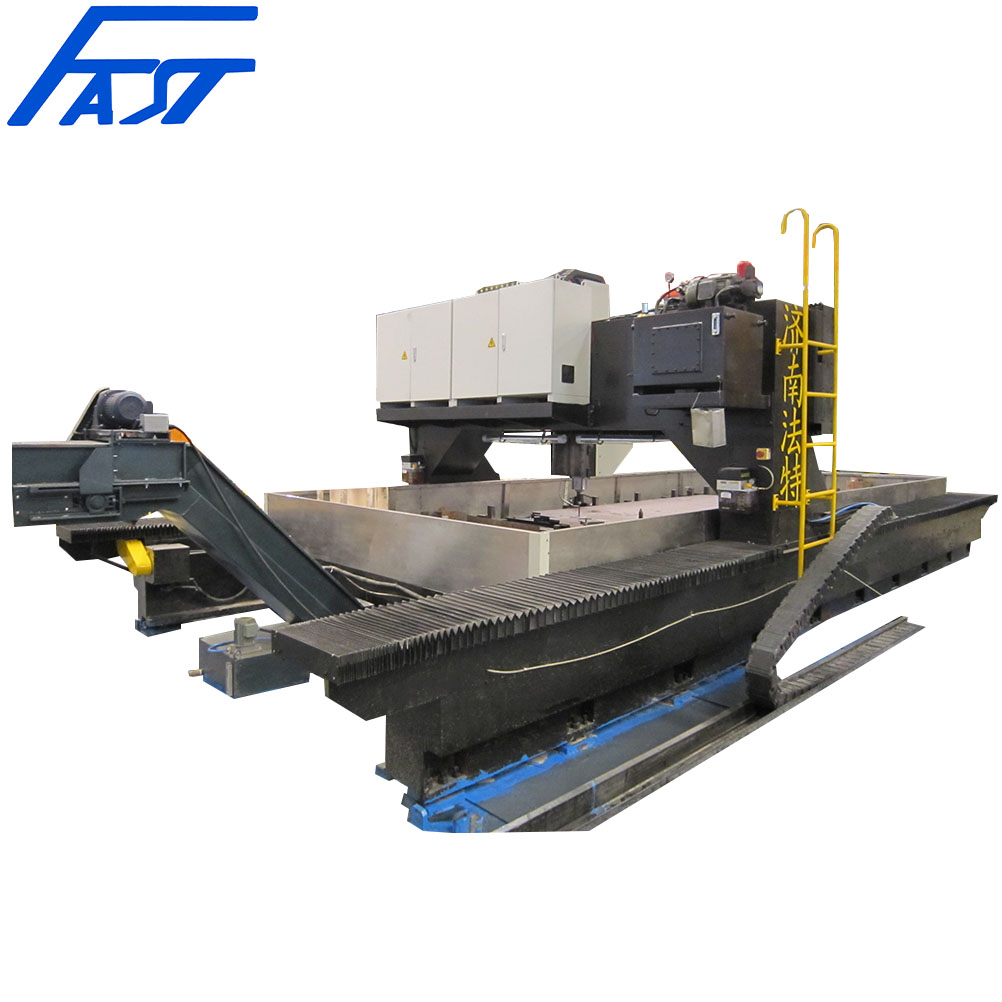

PZX6525 CNC Gantry Type Drilling & Milling Machine
APPLICATION

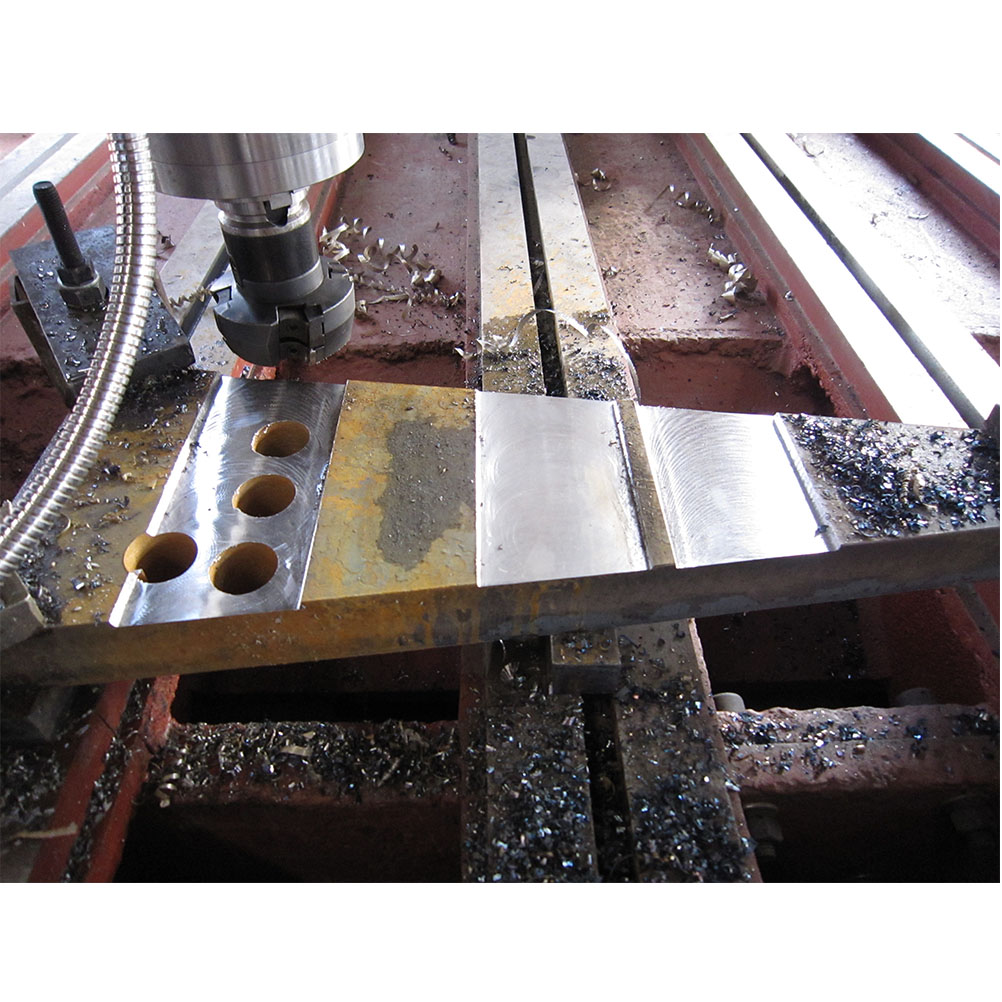

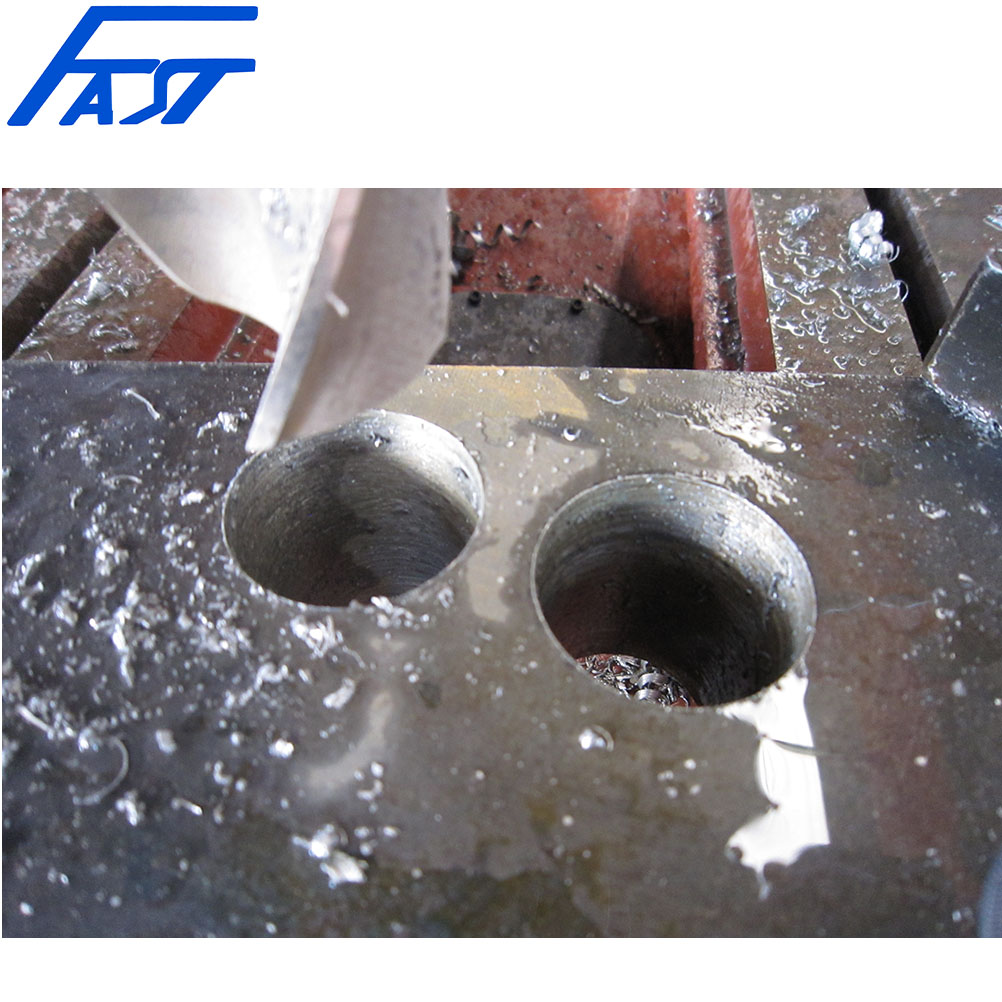

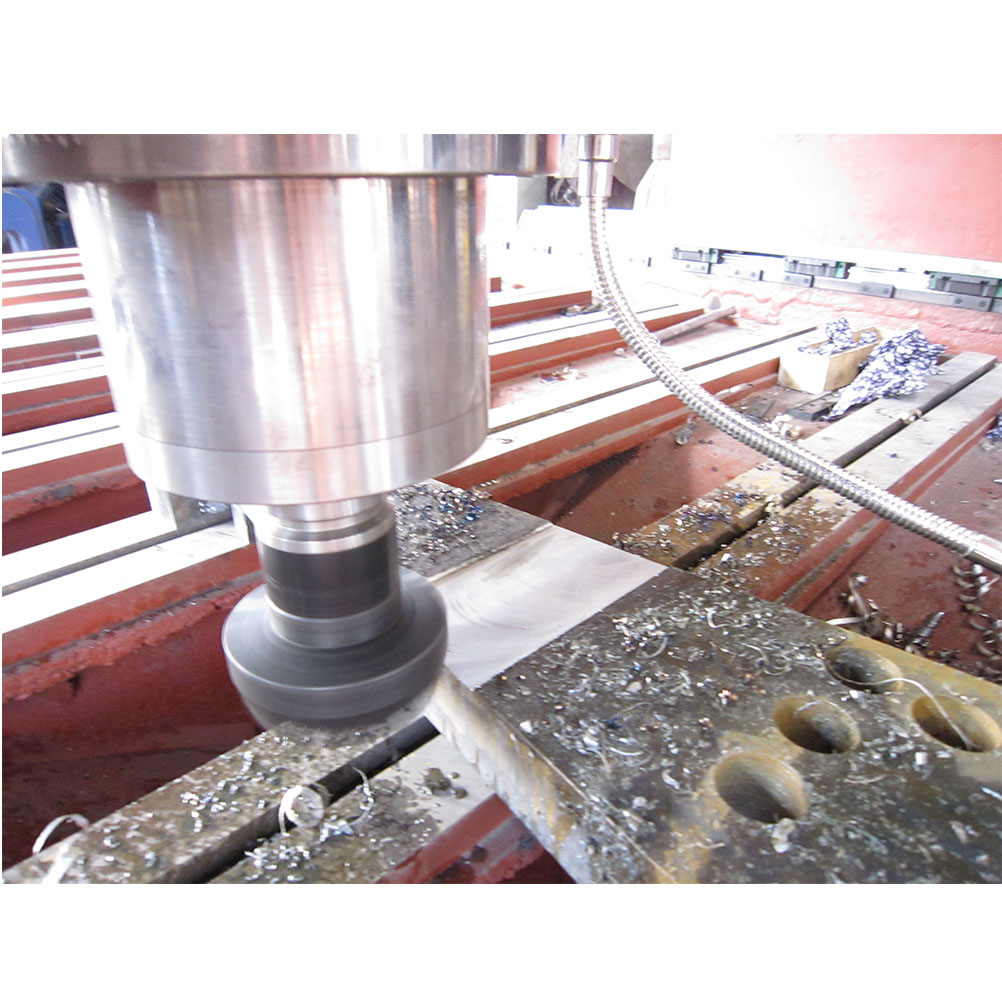

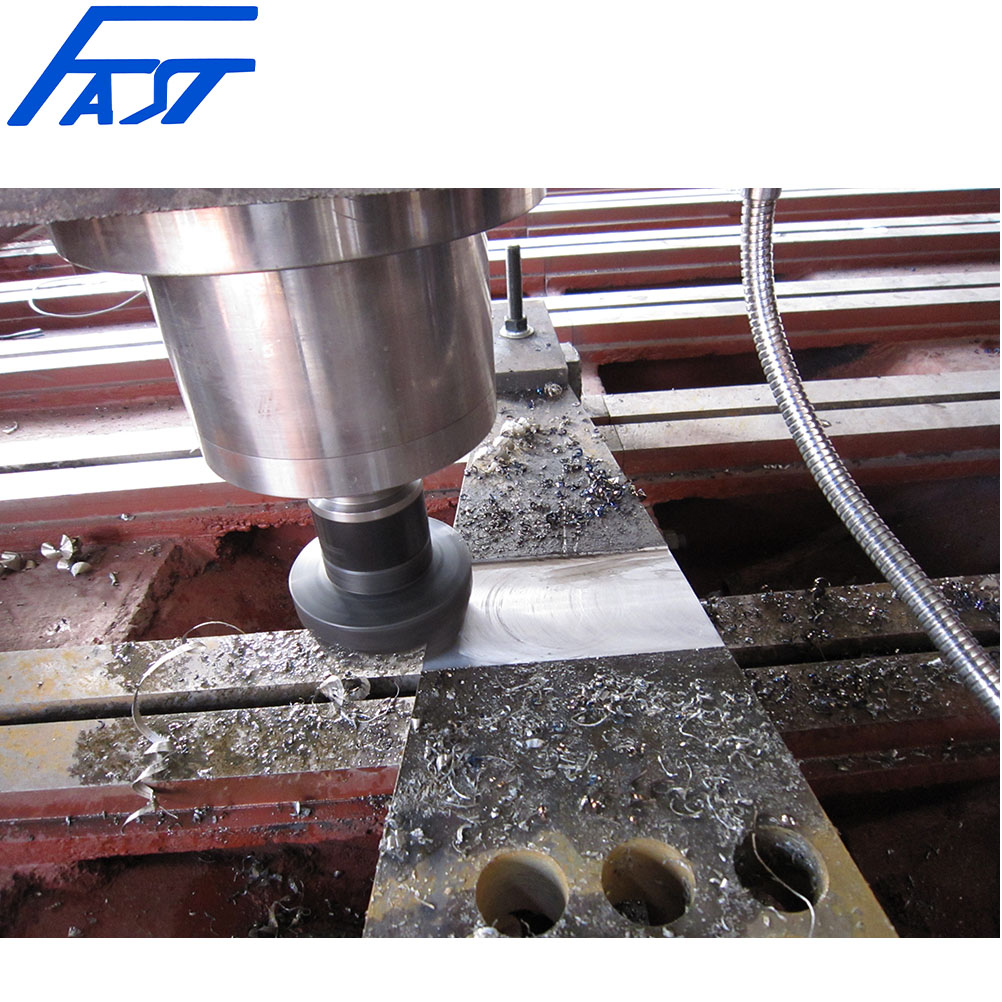

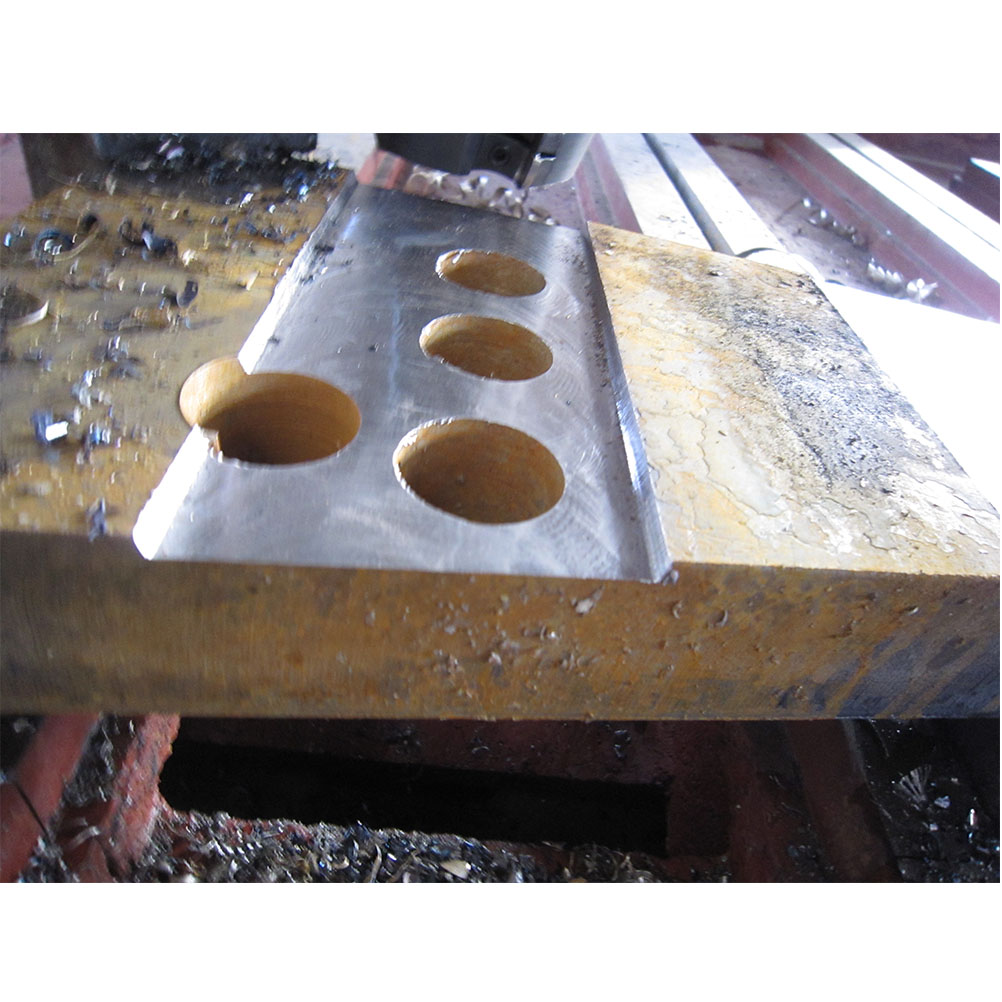

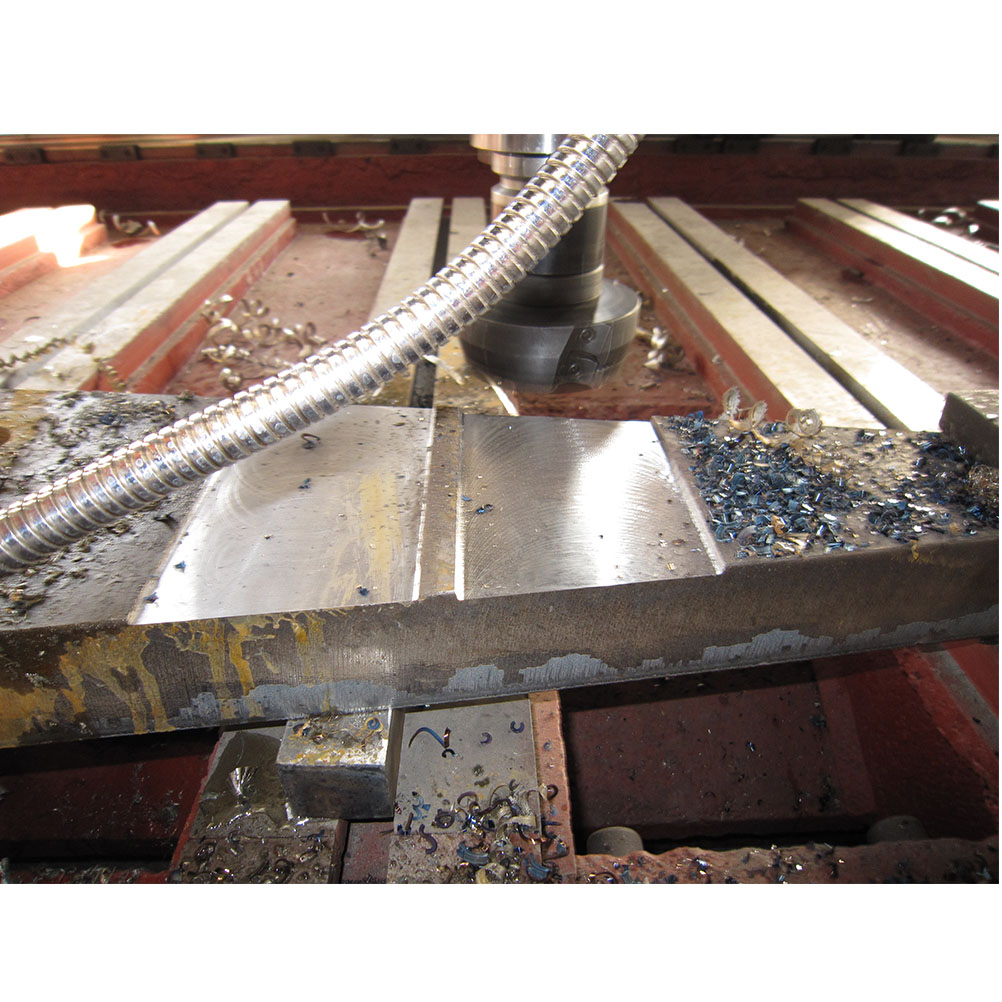

This machine is used for the drilling，tapping and milling for tube plate, clapboard，flange and rings. It is used in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc. It is suitable for carbon steel or composite materials. Carbide milling cutter or high speed steel twist drill bit are adopted. Digital control can realize automation, high precision, varieties, batch production.
COMPOSITION
Left and right gantry base
Worktable
Longitudinal movable gantry
Transverse movable saddle
Vertical sliding pillow drilling power head
Automatic chip removal
Circulating cooling unit
Hydraulic system
TECHNICAL DATA
Model
PZ2020G
PZ3030G
PZ4040G
PZ5050G
PZ6060G
Max. Size of Work piece(mm)
Max.Hole Distance L×W (mm)
2000*2000
3000*3000
4000*4000
5000*5000
6000*6000
Max. Thickness (mm)
250
250
250
250
250
The Distance Between The Lower Part of The Axes and the Work
Bench(mm)
230~730
Milling
Φ100 Cutter Head, Depth 2mm (Material Q345)
Max. Drilling Diameter (mm)
Φ50
Φ50
Φ50
Φ50
Φ60
Drilling power head Quantity
1
1 OR 2
2
2
2
Main Axes Taper Hole
BT50
Rotating Speed of Drilling Spindle (r/min)
30~2500
30~2500
30~2500
30~2500
30~2500
Motor Power of Drilling Spindle (kW)
22
22
OR 22*222*2
22*2
22*2
Longitudinal Movement(X-axis) Max Stroke (mm)
2000
3000
4000
5000
6000
X-axis Movement Speed (m/min)
0~8000
Lateral Movement(Y axis) Max. Distance (mm)
2000
3000
4000
5000
6000
Y-axis Movement Speed (m/min)
0~8000
Vertical Max. Stroke of Z-axis
500
500
500
500
500
Feeding Speed of Z axis
0~4000
Positioning accuracy
≤0.04
Repeat positioning accuracy
≤0.03
Number of clip cleaner
2
Speed of Clip Removal (m/min)
1
Clip Removal Motor Power(kW)
20.75
Outline Dimension L*W*H(mm)
4600*4200*3900
5800*5520*3900
7600*6540*3900
9200*8500*4300
9680*9520*6000
Machine Weight(T)
24
35
56
70
75
★ All of these models can be customized according to customer requirements.
